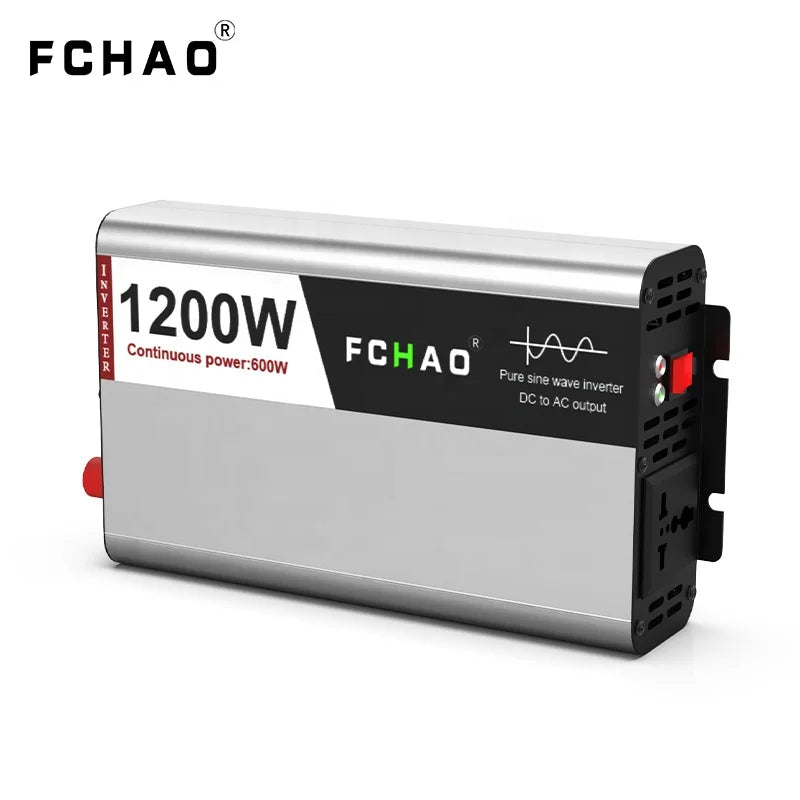

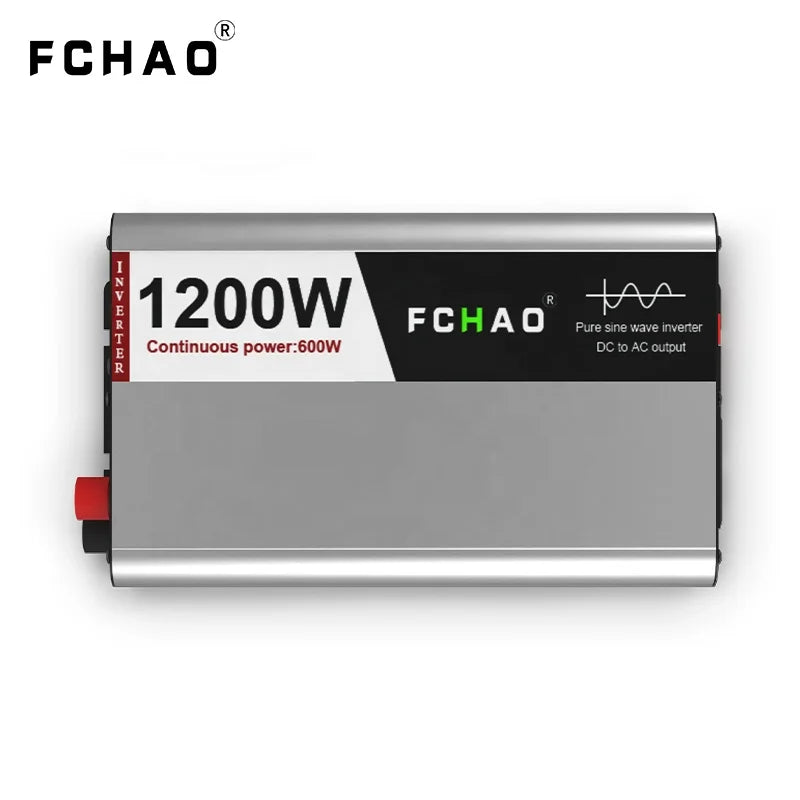

FCHAO 600W Car Inverter Pure Sine Wave Solar Inverter Off Grid Power Invertor 2000W 12V 24V to 220V 230V 240V for Home RV Car

FCHAO 600W Car Inverter Pure Sine Wave Solar Inverter Off Grid Power Invertor 2000W 12V 24V to 220V 230V 240V for Home RV Car

€89,99 EUR
€89,99 EUR
Sale Sold out
Shipping calculated at checkout.

SPECIFICATIONS

Brand Name: FCHAO

Model Number: FS-600W

ODM/OEM: Yes

Output Current: 2.72A

Output Frequency: 50Hz/60Hz

Output Type: Single Phase

Output wave form: Pure Sina Wave

Peak power: 1200W

Place of Origin: Guangdong, China

Rated power: 600W

Size: 24.7*13*5.7cm

Type: DC/AC Inverters

Warranty: 1 Year

Weight: 1.16kg

Product Description
Specification
FS-600W
Output
Rated power(Wt)
600W
Peak power(Wt)
1200W
AC Voltage (AC)
AC220V/230V/240V ±10%
Frequency(Hz)
50Hz/60Hz ±1Hz
Wave Form
Pure sine wave
Panel LCD show
Isolated LCD digital color screen：Battery power % ratio,Battery voltag,   AC voltage, AC power, Temperature
Input
Battery Voltage(V)
12V
24V
Voltage Rrange(V)
DC10-15V
DC20-30V
DC Current(A)
60A
30A
No load Current Draw(W)
≤6.5W
Efficiency
88%~92%
Battery Type
Open&sealed lead-acid battery(Customized lithium battery parameter )
Battery Input Protection
Internal Fuse
40A*2
40A*1
Low voltage alarm
Yes
Yes
Low voltage cutoff
10V±4%
20V±4%
Battery reverse polarity protection
By blowing the internal fuse

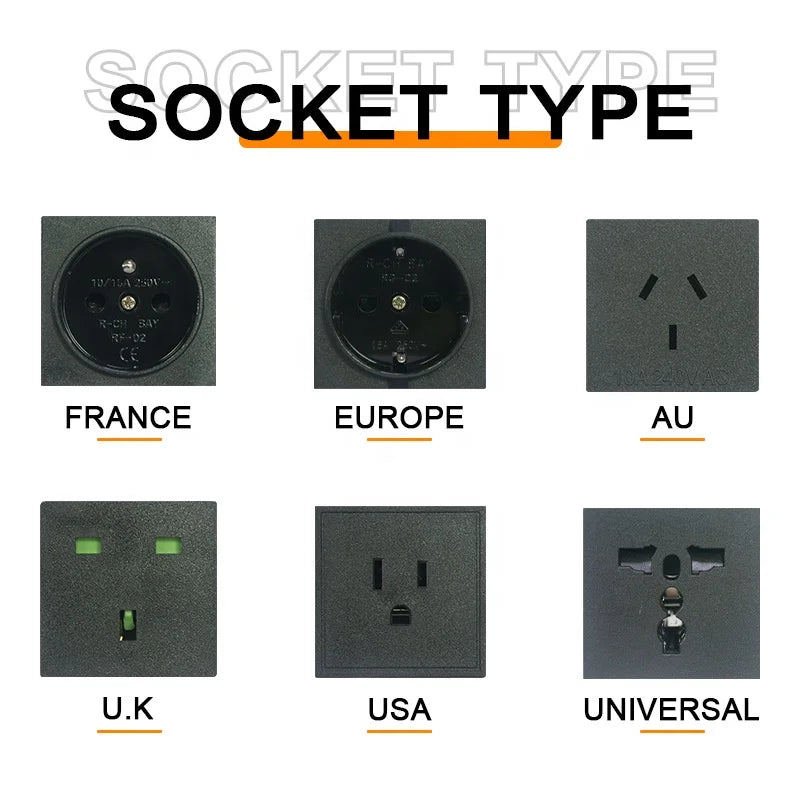

SOCKTE TYPE
FRANCE
EUROPE
AU
U.K
USA
UNIVERSAL

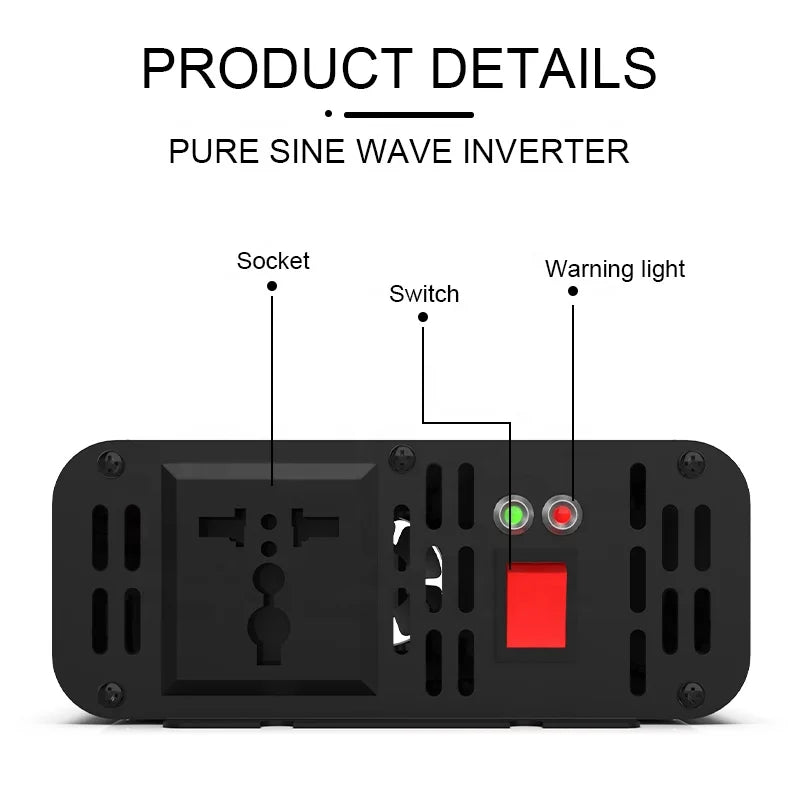

Details Images
Output Protection
Over temperature protection
When the temperature is ≥ 85℃, the AC output will be turned off, and the alarm will
sound 5 (continuously)
Temperature ≤ 75℃ automatic recovery
Overload protection
Rated load > 110%～130%,alarm 15sec and turnoff, recovery by the reset switch
Rated load > 130%～150%,alarm 5sec and turnoff, recovery by the reset switch
Rated load > 150%,alarm 2sec and turnoff, recovery by the reset switch
Short circuit protection
Turn off within 2 seconds, recovery after resetting the switch
Environment
Working temperature
-25° +80°
Working Environment
-25° +45°
Working humidity
30%～90% RH,No condensation
Storage temperature
﹣20℃ ～ +70℃(dry)
Vibretion resistance
10～500HZ 2G 10min/cycle,X、Y、Z axis 60min respectively
Cooling method
Load power > 50%, FAN ON/ <35%, Fan Off. Temperature > 50±5℃, Fan On / < 45±5℃ Fan Off
Safety Electromagnetic Compatibility
Safety Specification
CE/CB/RoHS
Pressure Resistance
Bat-PG:500VAC Bat-AC:1.5KVAC AC-FG:1.5KVAC
Insulation Resistance
Bat-PG,AC -FG:100M Ohms/500VDC/25℃/70%RH
Packing & Delivery
Package

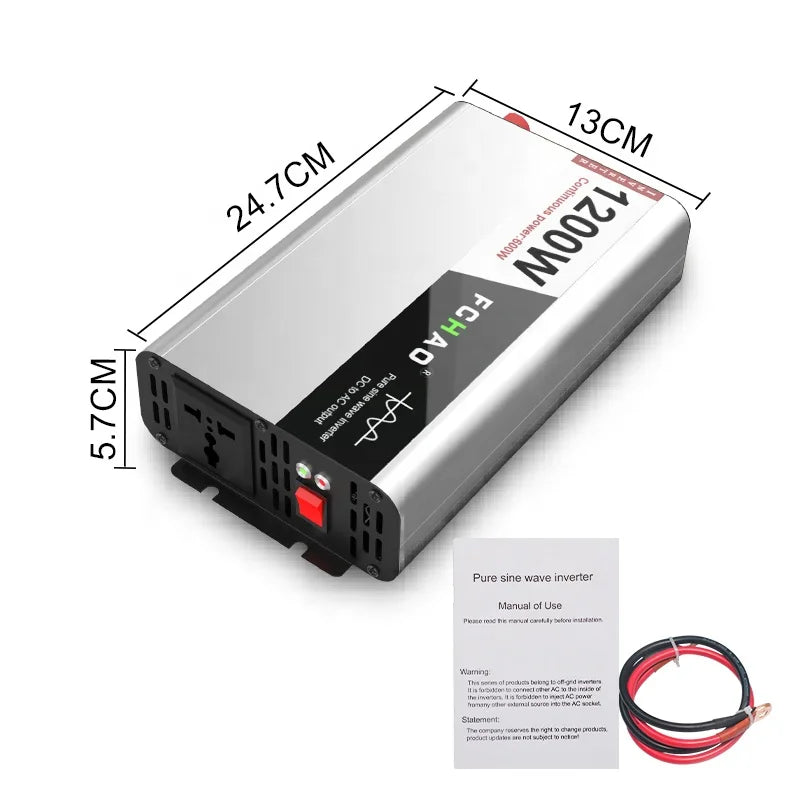

Product Size
24.7*13*5.7CM
Product N.W.
1.16kg
Inner Box Size
26.5*17.5*10CM
Outer Box Size
53*30*38.5CM
Piece/Carton
10Piece/Carton
Gross Weight
14.8kg
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Other
1. Efficiency test: (12.8V/25.6V) DC input voltage, 60% power measured.
2. All parameters not specified above are measured at rated load, 25℃ ambient Temperature
3. Output derating curve refer Figure 1(Base on environment temperature)
4. Output derating curve refer Figure 2(Base on battery voltage and load power)
